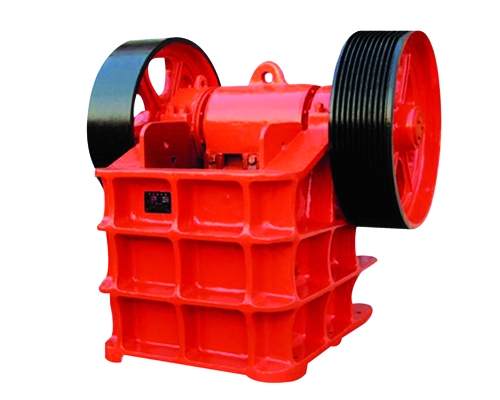

PE JAW CRUSHER

Classification:Crusher series Time:2020-12-22 06:25:56 Views:



Specification model Inlet size(mm) Maximum loading size(mm) Yield(t/h) Spindle speed(r/min) Spindle eccentricity(mm) Adjustment range outlet (mm) Matching motor Dimension(LxWxH) Weight (without motor)(kg)
  Length Width           Model Power(kw)
PEF150×250 250 150 125 1~3 285 6 10~40 Y132S-4 5.5 875×745×935 1160
PEF250×400 400 250 200 5~20 300 10 20~80 Y180L-6 15 1410×1310×1386 2572
PEX150×750 750 150 120 8~35 320 8 10~40 Y160L-4 15 1280×1610×1081 3350
PEF400×600 600 400 350 25~64 250 10 40~100 Y250M-8 30 1700×1732×1658 6482
PEX250×750 750 250 210 15~35 300 12 15~50 Y225M-6 30 1695×1920×1648 6840
PE250×1000 1000 250 210 10~32 330 15 15~50 Y280S-8 37 1530×1992×1380 10500
PE600×900 900 600 500 56~192 250 12 70~200 JR75-8 75 2575×3723×2375 16080
